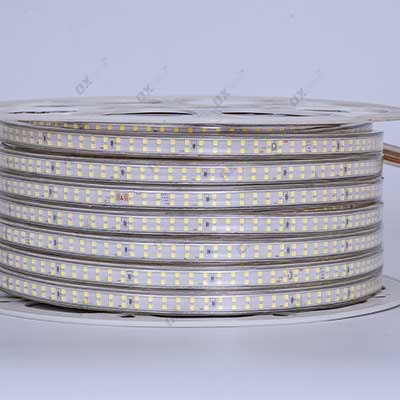

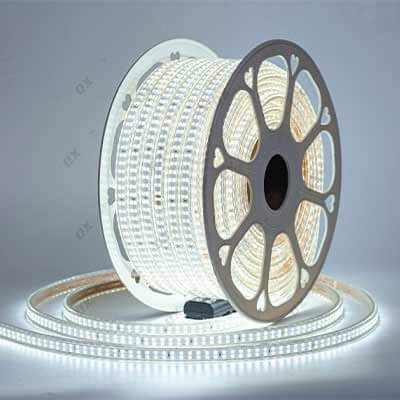

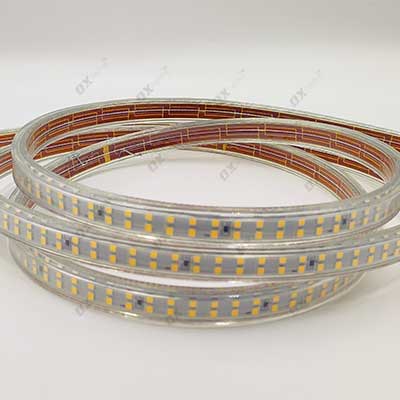

AC 110v LED Strip Lights

AC 110v LED Strip Lights China Supplier Manufacturer

A 110V LED strip is a type of LED lighting that operates directly on 110-120V AC power, no need for an external transformer or driver.
These are commonly used in residential and commercial settings where standard household voltage (110V in North America, 120V in some regions) is available.

✔ Direct AC Working – No need for a DC power supply; plugs directly into a standard wall outlet.
✔ Longer Support – Can typically run up to 50-100 meters (164-328 ft led ribbon) without voltage drop,

(unlike 12V/24V LED Tape, which require amplification every 5-10 meters).

✔ High Brightness – Often used for architectural, cove, and signage lighting due to high lumen output.
✔ Simple Installation – Fewer components (no driver needed), but requires proper insulation and safety precautions due to high voltage.

110V vs. 12V/24V LED Strips

Feature	110V LED Strip	12V/24V LED Strip
Power Source	Direct AC (110V)	Requires DC driver
Max Run Length	50-100m	5-10m (12V), 10-20m (24V)
Voltage Drop	Minimal over long distances	Significant over long runs
Safety	Higher shock risk	Safer (low voltage)
Installation	Simpler (no driver)	More complex (needs power supply)
Cutting & Customization	Usually at set intervals (e.g., every 1m)	Can be cut at smaller segments (e.g., every 3 LEDs)

Waterproof IP Class

IP65: Water-resistant (protected against low-pressure water jets)

IP67: Waterproof (can withstand temporary immersion)

IP68: Fully waterproof (suitable for permanent underwater use)



Application

Architectural & Cove Lighting
Long, uninterrupted runs in ceilings, cornices, and architectural details.

Outdoor & Landscape Lighting
Perimeter lighting, pathways, and garden accents.waterproof versions resist rain and moisture

Industrial & Warehouse Lighting
High ceilings, factories, and storage areas.

Event & Stage Lighting
Concerts, weddings, and stage backdrops.

Installation & Safety Guide

Tools & Materials Needed:
✔️ 110V LED strip
✔️ LED strip connector clips (if splicing)
✔️ Wire stripper & cutter
✔️ Insulated screwdriver
✔️ Electrical tape or heat shrink tubing
✔️ Mounting clips/adhesive tape
✔️ Power plug (if not pre-installed)
✔️ Optional: Dimmer switch (if dimmable)

—

Step-by-Step Installation Guide

1. Turn Off Power
2. Measure & Cut the LED Strip (If Needed)
110V LED strips can be cut at marked intervals (1 meter cutting).
Never cut between marked lines or will damage the strip.

3. Connect the Strip to Power

– Strip the wires (usually live (L), neutral (N), and ground (G)).
– Connect to a 110V power source using wire nuts or soldering.

4. Mount the LED Strip
– Clean the surface (dust/oil reduces adhesion).
– use mounting clips or aluminum channels

5. Test Before Finalizing
– Turn power back on and check if the LED strip lights up.

6. Secure & Conceal Wiring
– Use cable clips or conduit to hide wires.
– Avoid sharp bends or pinching wires.

Safety Tips
⚠️ Do not install near flammable materials.
⚠️ Avoid bending the strip sharply (can damage circuits).
⚠️ Do not exceed the maximum run length



Frequently Asked Question

Q: How long can outdoor LED strips last?
A: 3-5 years with proper installation and maintenance (warranty is 2 years)

Q: Can I cut and reconnect outdoor strips?
A: yes but Only at marked cut points using waterproof connectors

Q: Do they attract bugs?
A: Warm white (2700K) attracts fewer insects than cool white

Q: Can I install in freezing temperatures?
A: Yes, but flexibility decreases below -20°C/-4°F

Q: What is Voltage Options
A:110V AC: Longer runs without voltage drop, professional installation recommended
and it can run 50-100m but 12v can only run 5m
Q:LED LIGHT Factory
A:Yes,LED Strip manufacturer factory
